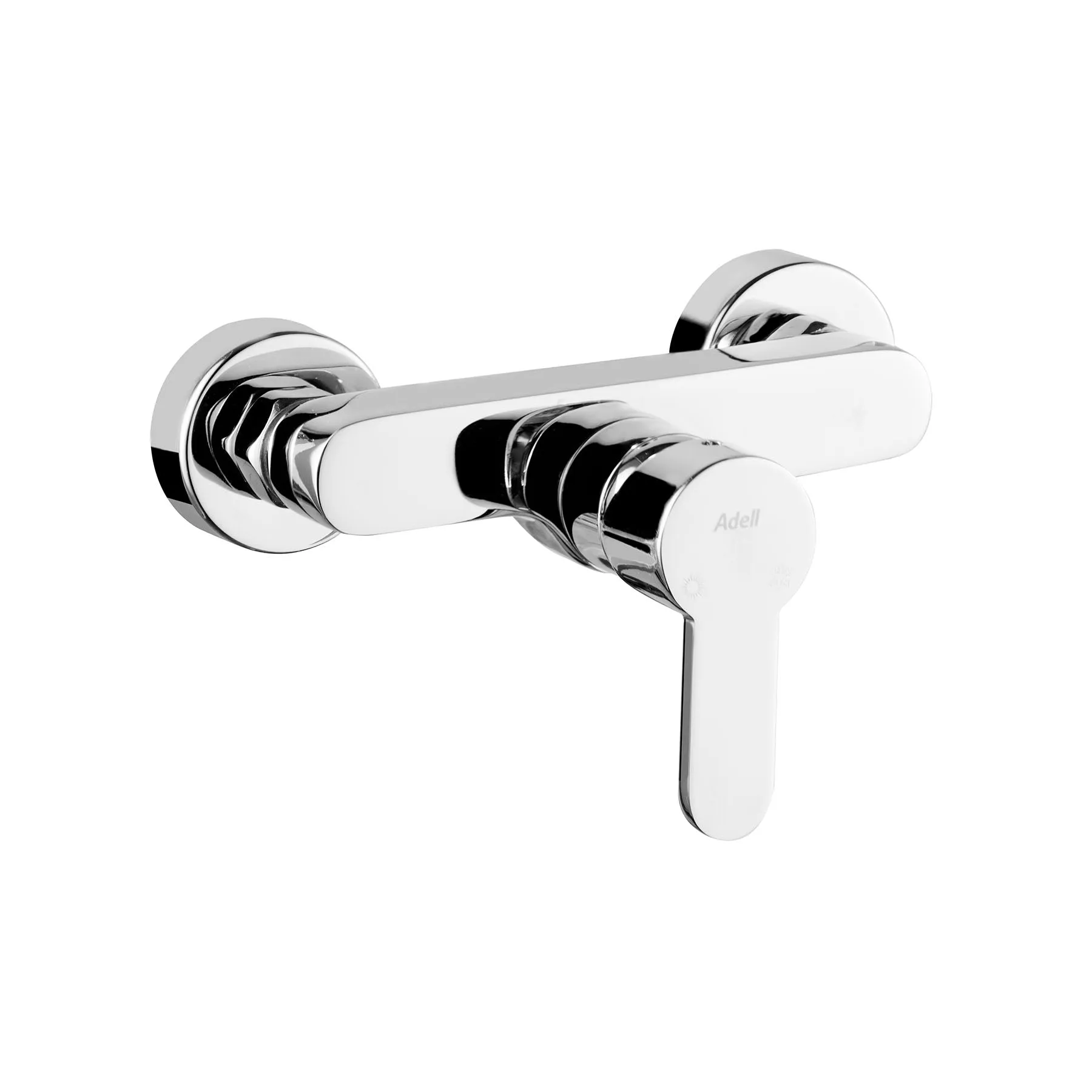

Technical Information
|
|
Product Standard TS EN 817 (Single Control) |
|
Manufacturer Warranty 6 Years (Painted And Coated Products For 2 Years) |
|
Color / Finish Chrome |
|
Operation Type Ceramic Disc Cartridge Ø35 mm Without Leg |
|
Installation Connection Type From The Wall |
|
Body Raw Material Brass |
|
Shower Connection G1/2" |
|
Wall Connection Axis Dimension 150±1 mm |
|
Dimension Of Wall Rosette Ø60 mm |
|
Number Of Control Handle Single |
|
Material Of Control Handle Metal |
|
Wall Connection Thread Type 1/2" |
|
Outlet Of Body Hand Shower - Wall Distance 58 mm |
|
Max. Performance Temperature 80°C |
|
Suggested Performance Temperature 60°C |
|
Max. Performance Pressure 10 Bar |
|
Suggested Performance Pressure 3 Bar |
|
Min. Performance Pressure 0.5 Bar |
|
Suggested Min. Pressure 1 Bar |
|
Product Total Height 105 mm |
